Wir stellen auf der klangBildern in Raum 515 folgende Konfiguration vor:
Rega P 10 Plattenspieler inklusive Aphelion MC Tonabnehmer ( Premiere )
Rega Aura Referenzphonostufe
Rega Saturn R CD Player
Rega Aethos Vollverstärker ( Premiere )
Russell K RED 120 Standlautsprecher
Vertere, Wireworld Verkabelung
Atacama Evoque ECO HiFi Rack
In Raum 534 wird folgendes präsentiert:
Tonar Plattenspielerzubehör mit aktivem Workshop zum Thema Plattenpflege
Streaming Hifi Set bestehend aus dem brand neuen T+A PA 1100E Vollverstärker, einem Roon Streamer/Server, dem Pro-Ject Raum-Akustik Special Editon Plattenspieler und B&W 705 S2 Regallautsprechern.
Eine detaillierte Beschreibung der Produkte von Rega finden Sie auf der Seite des Herstellers.

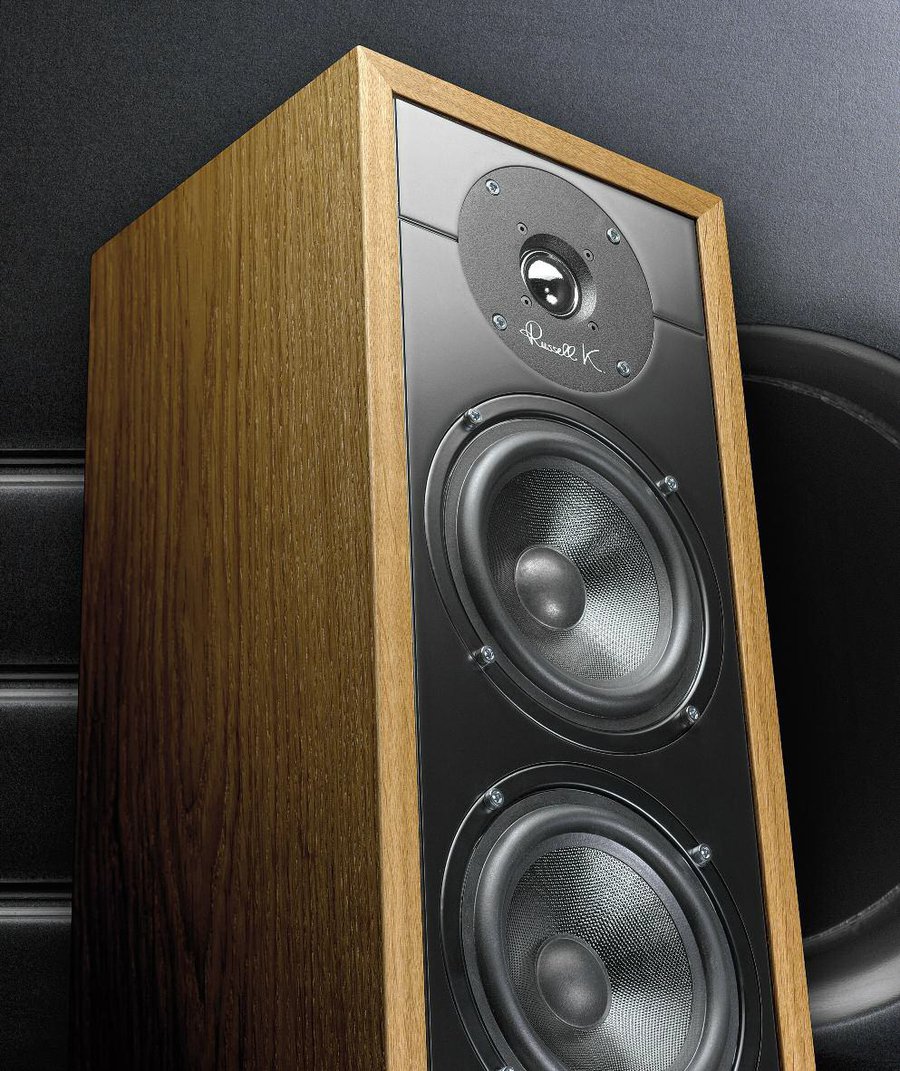

Russell K Red 120 Precision Audio Loudspeaker System
Designed in the UK
Cabinet
Dimensions H- 860mm (910mm including plinth, base and spikes) W-200mm D-190mm
Construction 16mm MDF all sides apart from front baffle which is 19mm.
Totally undamped cabinet
3 acoustic loading bracing shelves with multiple apertures, mounted below the tweeter, below the bass mid driver and below the sub bass driver
1 bracing shelf mounted near the bottom of the enclosure containing an internal port
Internal port vents into a small chamber containing a second reflex port tuned as a system to 24Hz
Drive units
2 x 5” Bass units with impregnated paper cone and curved optimised acoustic profile
High power Ferrite magnet driving a 25mm voice coil with aluminium former and Faraday distortion cancelling copper ring
25mm soft dome tweeter
Ferrite magnet system
Copper Clad Aluminium voice coil wire on a Fibreglass Former and Faraday distortion cancelling copper ring
Crossover
All drivers connected in positive phase
Sub bass driver starts roll off at 80Hz 6db/Oct fed by “Enclosed Field Iron Core Inductor”. Features high power without saturation, very low DCR and almost no stray magnetic field
Bass/Mid driver crossover frequency 2200Hz nominal 12 db/Oct. Utilises an “Enclosed Field Ferrite Core Inductor “in the signal path. Very low DCR nominal stray fields
Tweeter attenuation by misaligned Zobel network as opposed to conventional L-Pad
All Drivers have only one component in the signal path
Phase optimised through the crossover region
In room usable frequency response 25Hz-22KHz (dependent on room)
Sensitivity: 86db 1 watt 1 Metre
